Interactive White Boards


Interactive White Boards

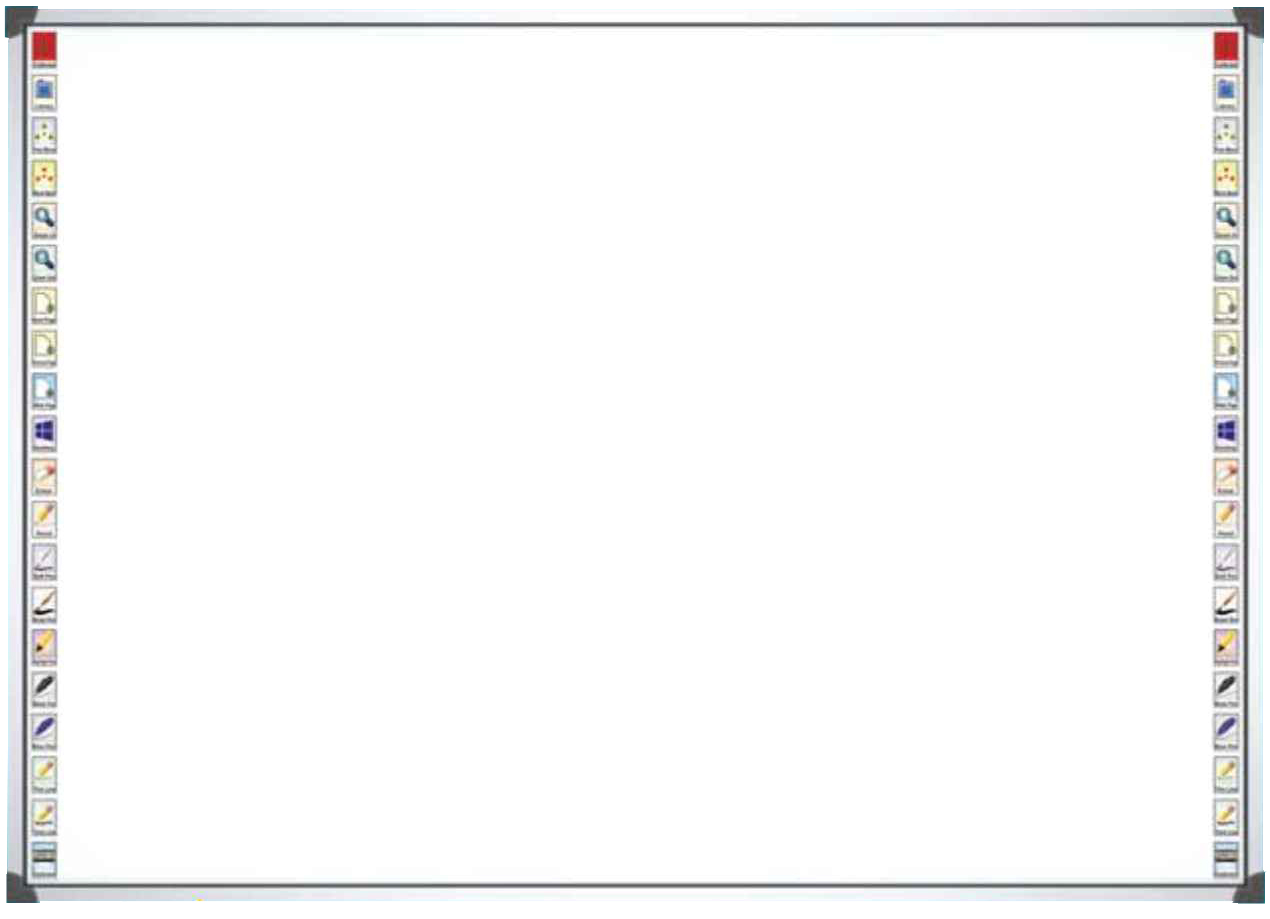

An interactive white board is a classroom tool that allows images from a computer screen to be displayed onto a classroom board using a digital projector. The teacher or a student can “interact” with the images directly on the screen using a tool or even a nger.

With the computer connected to the internet or a local network, teachers can access information around the world. They can do a quick search and nd a lesson they used previously. Suddenly, a wealth of resources is at the teacher's ngertips.

For teachers and students, the interactive white board is a powerful benet to the classroom. It opens up the students to collaboration and closer interaction to the lessons. Multimedia content can be shared and used in lectures, keeping students engaged.


Product are major use in

  •   Presentations & Projects display
  •   Encoring critical thinking
  •   For users with special needs

Available Frame Colour Option

Aluminium
Black
White

Compatible With


Multi Touch

  •   Multi users can write on the board, Simultaneously by fingers and any pointing device.

Accurate Positioning

  •   9 point calibration for higher accuracy.

Soft Hotkey

  •   20 hot key on both side for frequently used applications, also available for customization as well.

Scratch Proof Surface

  •   Rugged ceramic steel surface.

Innovative Technology

  •   Infrared touch technology shows its excellent performance in anti light interference. Low gloss avoids strain to eyes.

Low maintenance

  •   Highly integrated designs make it so easy to install and can replace any key part of the board.

TITLE-82"C19
Model TITLE-82"C19
Size 84"
Aspect Ratio 4:3
Active Area (W X H) 1680 X 1185 mm
Overall Size (W X H X D) 1741 X 1246 X 35 mm
Packing Size 1890 X 1395 X 90 mm
Technology Infrared sensor technology
Surface Material White Ceramic steel Anti scratch, Anti-glare
Calibration 2 points / 4 points / 9 points
Writing Method Pen, fingers or any other pointing objects
Multi-touch 10 touch points
Communication Port USB 2.0
Hotkey 20 hotkey on each side of board
Outer Frame Natural aluminium alloy Section
Technology Parameter
Resolution 32768(W)*32768(D)
Positioning Accuracy <2mm
Response Speed <8ms
Cursor Speed Max. 300 dots/second
Power Consumption <(200mA DC 5V)
Power Supply USB power supply
Operating System Windows 7/8/10, Linux,
android
Environmental Parameter
Work Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 85°C
Work humidity 20% ~ 90%
Storage humidity 10% ~ 90%
Work Place Indoor, outdoor
Accessories
Pen 2
CD 1
USB cable 1(5 m)
Wall-mount 2
Mobile Floor Optional
Warranty 2 year
Software facility or functions
Pen, eraser, annotation, colour option, recording features, highlighting, zoom, screen recorder, mathematical tools, infinite internal library etc.
TITLE-82”M19
Model TITLE-82"M19
Size 84"
Aspect Ratio 4:3
Active Area (W X H) 1680 X 1185 mm
Overall Size (W X H X D) 1741 X 1246 X 35 mm
Packing Size 1890 X 1395 X 90 mm
Technology Infrared sensor technology
Surface Material Paint coated Surface
Anti-glare
Calibration 2 points / 4 points / 9 points
Writing Method Pen, fingers or any other pointing objects
Multi-touch 10 touch points
Communication Port USB 2.0
Hotkey 20 hotkey on each side of board
Outer Frame Natural aluminium alloy Section
Technology Parameter
Resolution 32768(W)*32768(D)
Positioning Accuracy <2mm
Response Speed <8ms
Cursor Speed Max. 300 dots/second
Power Consumption <(200mA DC 5V)
Power Supply USB power supply
Operating System Windows 7/8/10, Linux, android
Environmental Parameter
Work Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 85°C
Work humidity 20% ~ 90%
Storage humidity 10% ~ 90%
Work Place Indoor, outdoor
Accessories
Pen 2
CD 1
USB cable 1 (5 m)
Wall-mount 2
Mobile Floor Optional
Warranty 2 year
Software facility or functions
Pen, eraser, annotation, colour option, recording features, highlighting, zoom, screen recorder, mathematical tools, infinite internal library etc.
