Interactive Flat Panel

Interactive Flat Panel

65" / 75" / 86" / 98"

Title Display System The 4k HD Interactive Flat Panel has integrated high-quality speakers and a touch screen. We produce big size touch panels to improve the total collaboration, interactivity, and audio-visual effects of a classroom, meeting space, conference room, and virtual studio. You may access all the applications (browser, annotation software, educational apps, etc.) on an interactive flat panel, which is similar to an enlarged tablet. The basic smart class model of the interactive whiteboard and projector has been upgraded to a touch panel. Users may write, draw, annotate, and save documents on the touch screen itself with this all-in-one solution. Additionally, it includes a built-in sound speaker that fully satisfies the needs of users.

You are no longer required to bother about projector maintenance or lamp replacement. The cost of an interactive flat panel changes depending on size; it is a one-time expenditure. Our models are IIFD55, IIFD65, IIFD75, and IIFD86, and we provide touch panels that are 55 inches, 65 inches, 75 inches, and 86 inches. In our plant in India, we produce interactive flat panels with great accuracy and precision. Our touch screens are capacitive touch displays that can be manipulated with a finger, dummy pen, or any other opaque object. They have a 20-point touch screen and use Title Display System. Using our fantastic service network, we operate over all of India.

Interactive Flat Panel

A large-format touchscreen show referred to as Associate in Nursing Interactive Flat-Panel show (IFPD) is ideal for conference rooms and alternative cooperative settings. it's Associate in Nursing upgrade over clumsy or outdated projector technology, with an improved show, improved property, and integrated package solutions.

These solutions are ideal for work-related endeavours, academic studies, and even leisure time at home. The benefits of an interactive flat-panel display include outstanding screen quality, integrated software, and many more.

Key Elements of Interactive Flat Panel

Multi Touch
Digital Pen Support
Extensive Connectivity
Wireless Sharing
Remote Video Conferencing


Title Display Interactive Flat Panel

Size 86���� Diagonal
Aspect Ratio 16:09:00
Backlight Technology DLED
View Angle 178 Degree
Touch Induction INFRARED (IR)
Touch Point 20 Point Touch
Response Rate 8 ms
Resolution 3840��2160
Contrast Ratio Mega Contrast Ratio
Brightness (nits) 350
Power Consumption 145W
Power Supply AC 100V-240V 50/60Hz
Speaker Inbuilt 10W x 2 + 15W x 1
Mounting kit Wall mount Kit
Port HDMI1.4 & HDMI2.0, HDCP1.4 & HDCP2.2, USB
Communication Port USB (Touch) x 1

A smart class solution, Interactive Touch Panel operates for years with unmatched brightness and requires no upkeep. Touch Panel satisfies all of your requirements, including those for idea sharing, fluid writing and annotating, playing HD films, and running high-quality audio files. In other words, an interactive display panel improves the learning environment by giving students and teachers access to real-time learning and instruction. Furthermore, everyone can afford touch panel pricing.

  •   Ultra-narrow profile 13.3 mm frame
  •   4K UHD 178 Degree° Display with Viewable
  •   High-precision infrared 20 point touch
  •   Support en & Finger touch
  •   Reserved for the OPS interface
  •   HDMI , Antenna hidden inside
  •   Easy switching between dual systems
  •   Standard anti-glare and tempered glass
  •   Support wireless screen share
  •   Smart panel software included
  •   In built Wi Fi and Bluetooth in Android
  •   Scan QR code to connect mobile phone

Applications of Touch Panel

  • Outstanding Virtual Studios
  • Interactive Video Classrooms for Collaboration
  • Optimized Business Meetings
  • Excellent Virtual Studios

Remote video conference

Efficient communication any time and anywhere, real-time screen sharing, barrier-free communication and presentation, meeting appointments, screen sharing/multi-party comments/multi-terminal participation/oneclick minutes synchronisation.


Multi-screen Interaction

Compatible with multiple third-party sofware to support multi-screen interaction such as tablets, mobile phones, Notebooks, Desktop-Pc and etc., ensuring that meeting are stable and efficient.


Movable Stand

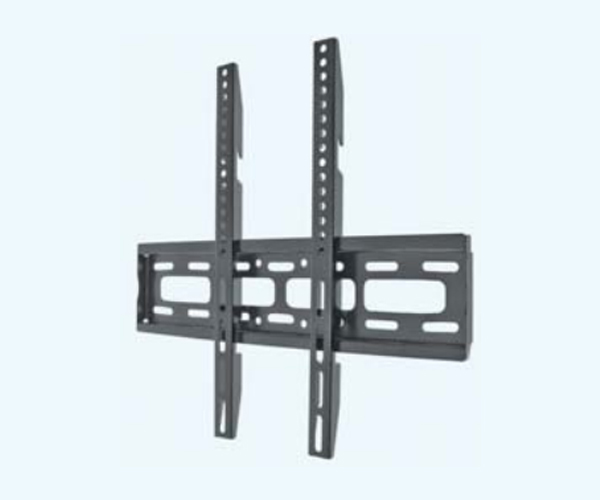

Wall Mount
